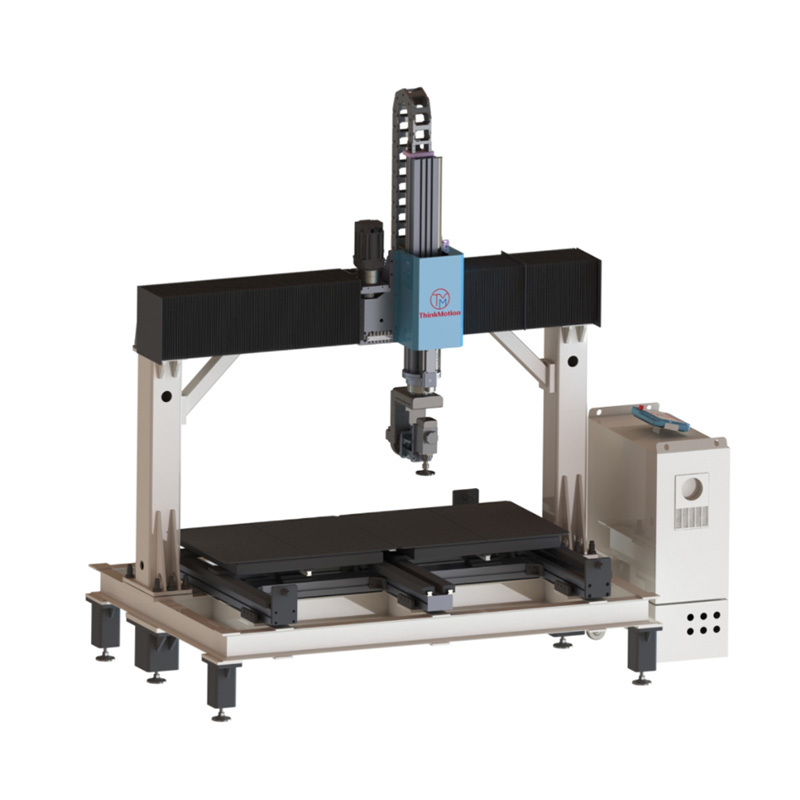

Gantry Grinding Robot (Machine Size can be customized)

The entrepreneurial team has 15 years of continuous technological accumulation and was once a successful entrepreneur of a leading industrial robot company in China.

Category: Gantry Grinding Robot

Keywords: Low Power Grinding Robot | Gantry Grinding Robot

Consult

MODEL	UNIT
Power source	V	AC220±10%50HZ
Maximum power	KW	7.5
Drive system	﹣﹣	Motor&Reducer
Maximum size of workpiece (surface grinding)	m	Single station: 0.8x1x0.5 Double station: 0.8x0.5x0.5
Maximum size of workpiece(three-dimensional)	m	Single station: 0.8x1x0.5 Double station: 0.8x0.5x0.5
DOF	﹣﹣	5
Grinding speed	mm/s	50
The X / Y / Z servo motor	KW	1.5/1.5/1.5
Axis A servo motor	KW	0.75
Axis B servo motor	KW	0.75

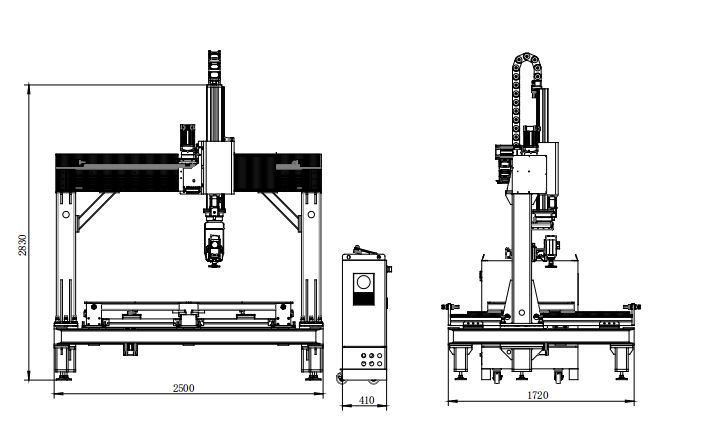

Floor space	﹣﹣	Length 2500mm x Width 1720mm x Height 2830mm

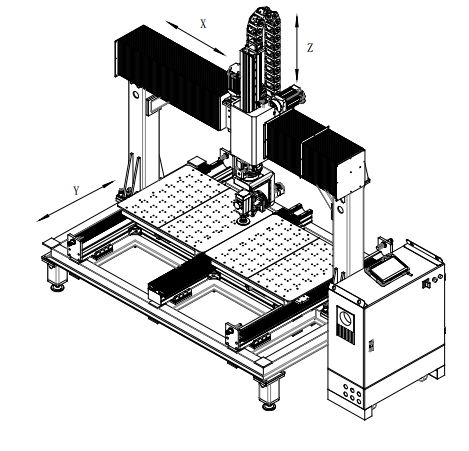

Stroke
X	mm	1500
Y	mm	800
Z	mm	500
Aaxis	angle（°）	±100
Baxis	angle（°）	±120
Net Weight
Main Body	t	1.2
